T7BB(T7BBS)-B02(P1)-B02(P2)-1R00-A1 DOUBLE HYDRAULIC VANE PUMP FOR INDUSTRIAL APPLICATION

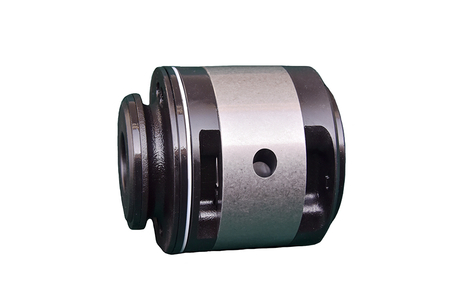

T7BB(T7BBS)-B02(P1)-B02(P2)-1R00-A1 is a kind of double  hydraulic vane pump  of high pressures. It's specially designed for industrial applications such as  plastic molding injection machines, press machines and die casting machines as well.  Its cartridge kit design includes rotor, cam ring, vane kit of double lip, balancing plates etc.  The combination of different cartridges in double pumps allows low flow at high pressure (300 bar max.) and high flow at lowerpressure. This is a clever way to optimize your flow circuit design.It also could gain the fast pressure cycle change with a precise flow repeatabilithy.

SPECIFICATION:

1. Displacement :5.8 ml/rev. The displacements of P1 and P2 can be varied with different ml/rev.

2. Connection: SAE, 4-bolt flange

3. P1and P2 Mounting can be variable (for details see the catalogue attached) with 32 different posistion

4. Shaft: both  straight keyed and splined available

5. Rotationg: right hand or  left hand

6. FLOW RATE @ 1500RPM: 8.7l/min(p=0bar), 7l/min(p=140bar),4.8l/min(p=320bar)

7. Input Power @ 1500RPM:0.5kW(p=7bar), 2.6kW(p=140bar), 5.4kW(p=320bar)


FEATURES:

1. Low energy consumptions

2. Low  noise level

3. High volumetric efficiency

4. Easy for installation and after sale service

5. extended long service life


APPLICATION:

1. Press

2. Injection machines

3. Lubrication

4. Machines tools
